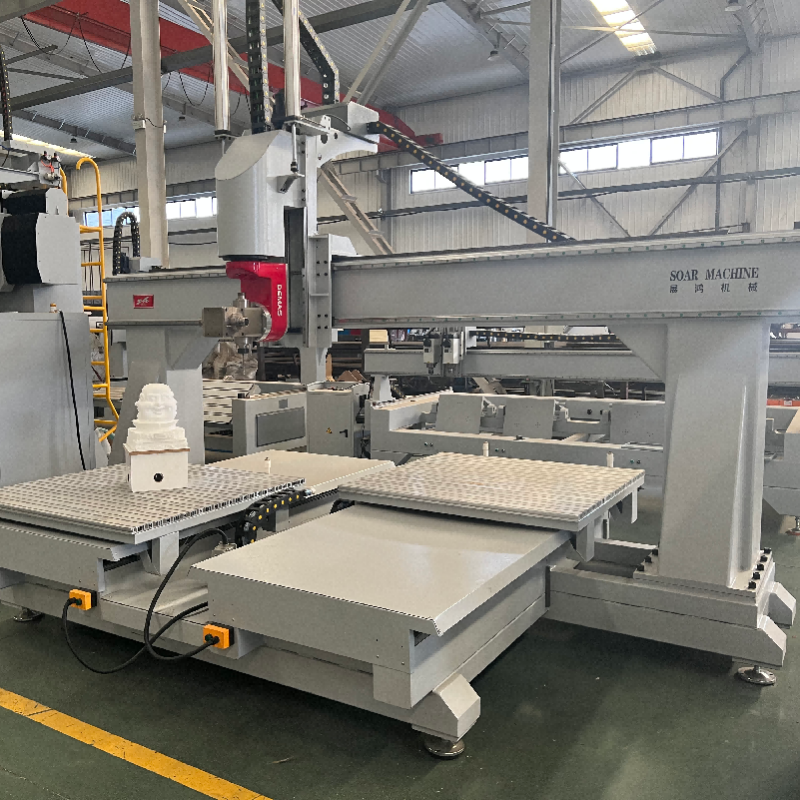

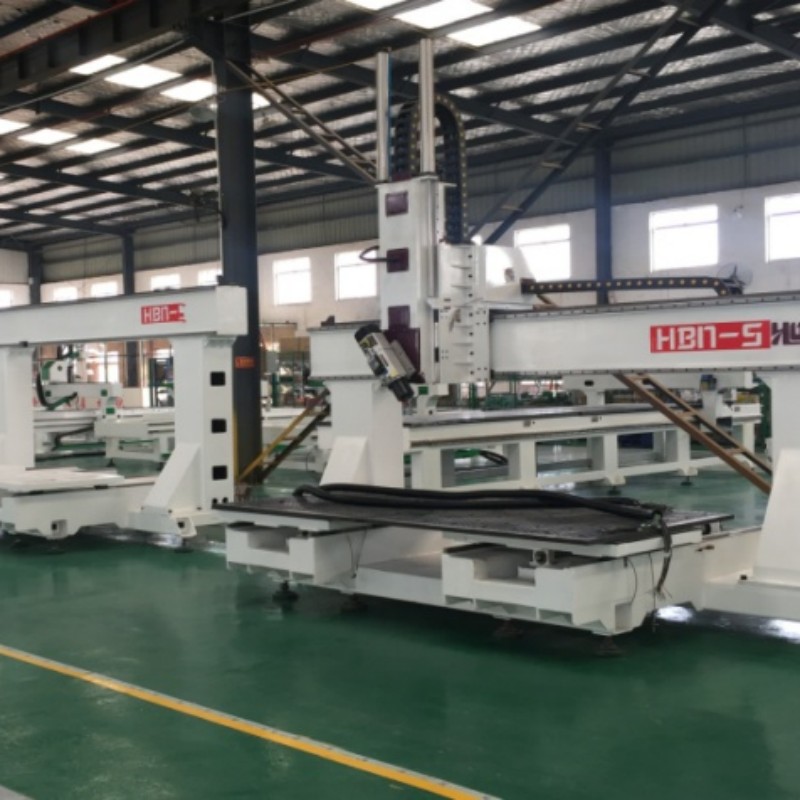

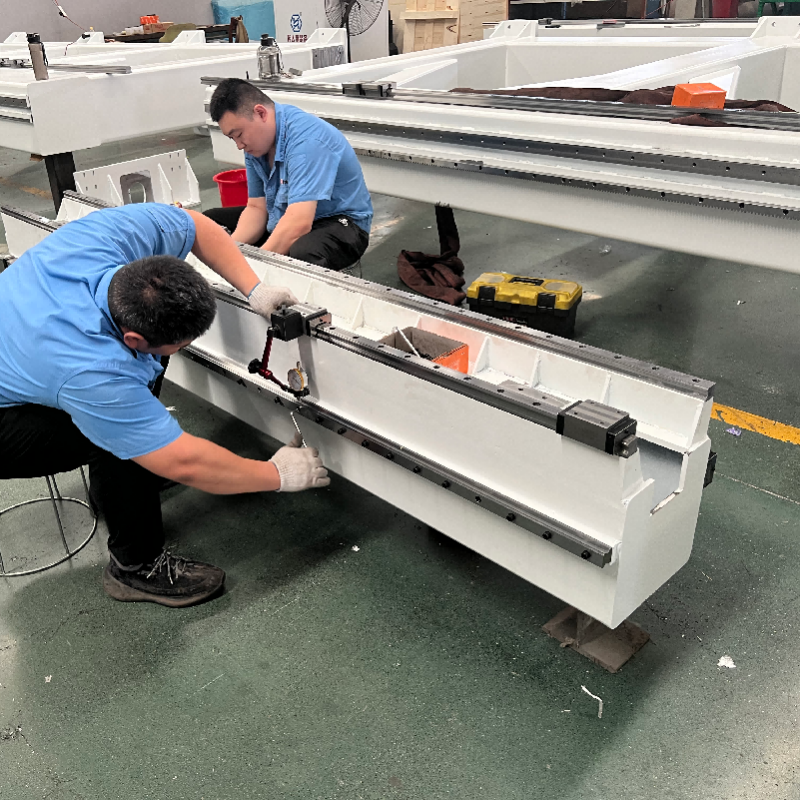

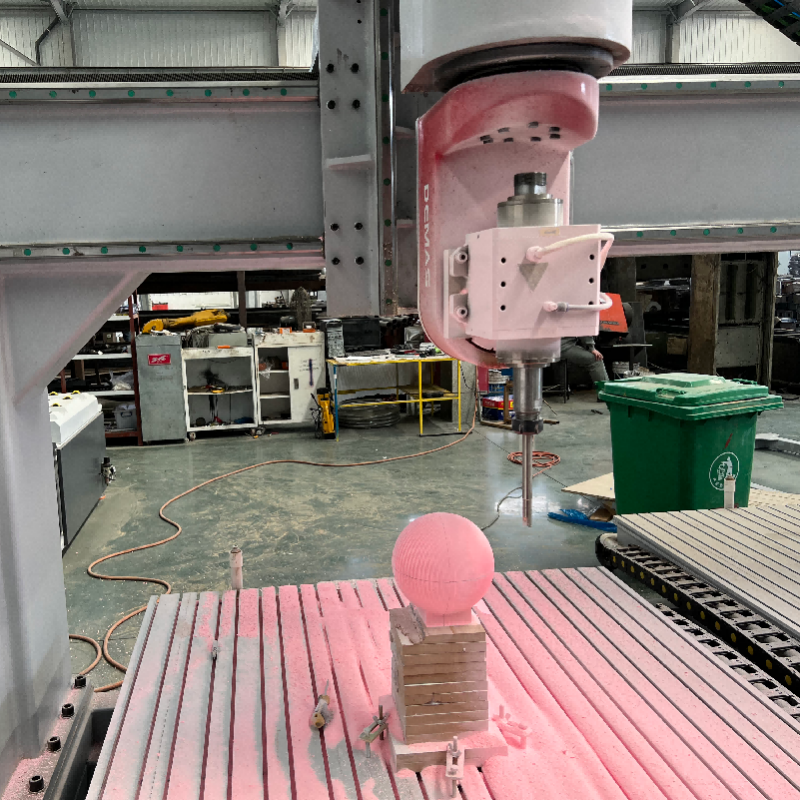

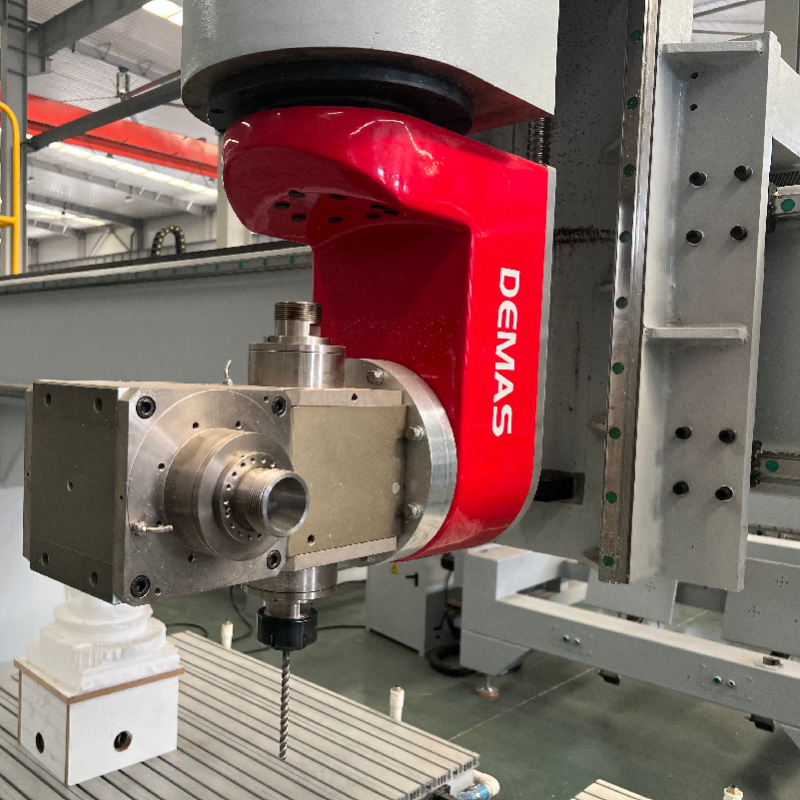

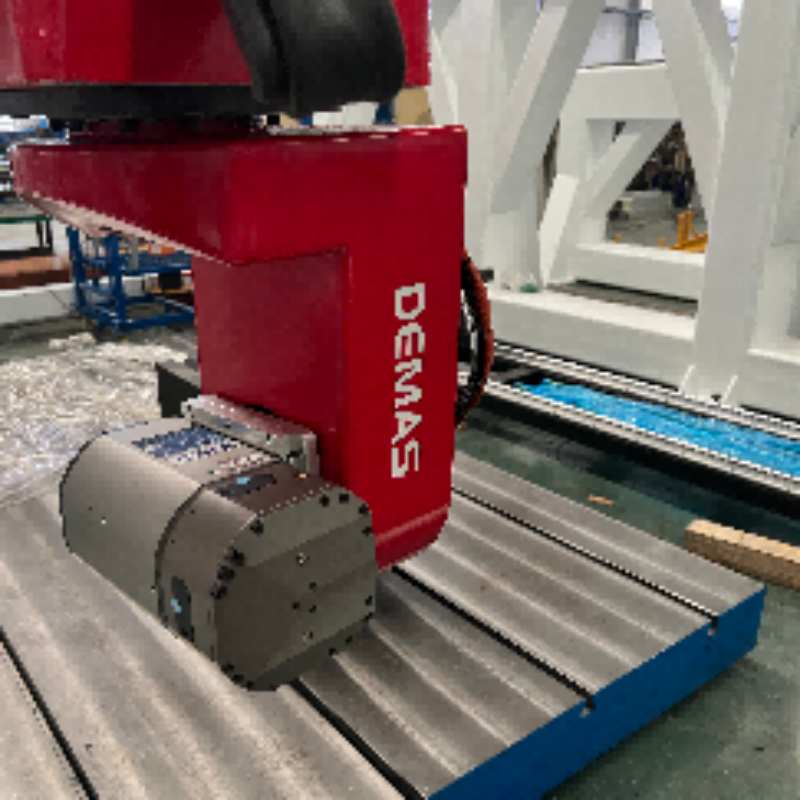

5 axis cross axis CNC router

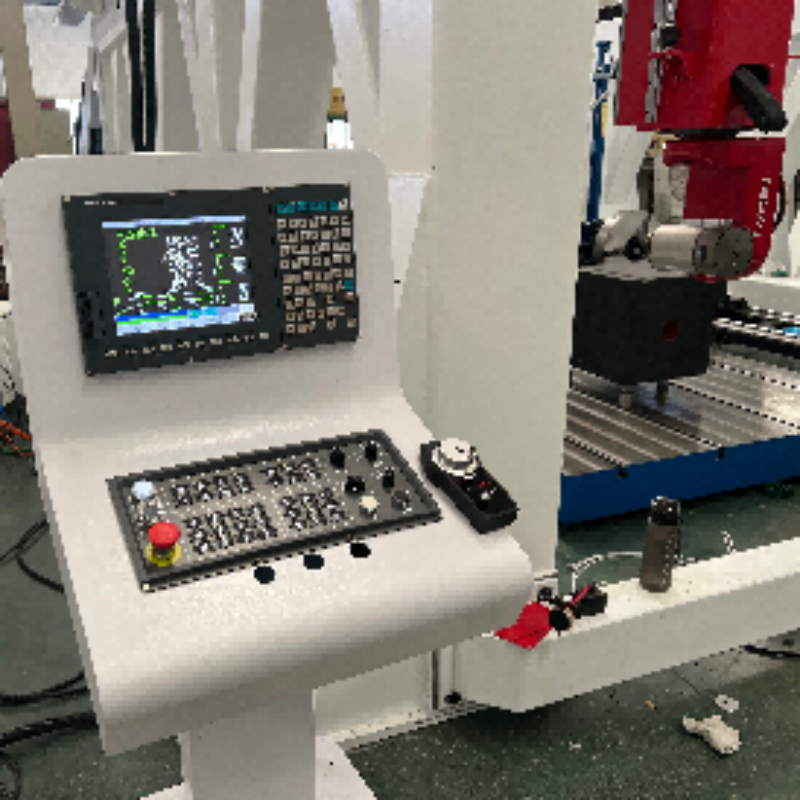

The worktable is made of high-strength cast iron, the beam is fixed, the worktable is movable, and the work is flexible. The control system has high accuracy, diversified operation, and protection mechanism to prevent mechanical collision caused by overtravel operation. X, Y, Z are driven by high-precision pre-stretched ball screws, which is conducive to the high-precision work of the workpiece.

Send email to us

Product Detail

Product Tags

Video

Application

1. Wooden Molds pattern industries:

Sculpture various large non-metallic mold can be particularly suitable for any kind of wood, resins, wooden pattern model, wooden model aviation and other wooden mould.

2. Styrofoam EPS foam molds pattern industries:

Figurative/characters sculpture,animal sculpture,outdoor sculpture, modern sculpture,theme park display,3d sculptures.

3. 3D model industry:

Cars models, aerospace models, boat ship marine yacht vessels models, transportation. Spare parts of industries above

Configuration

item	name	number
	Taiwan SYNTEC SYSTEM	1
	X axis SYNTEC 1KW servo motor	1
	Y axis SYNTEC 1KW servo motor	2
	Z axis SYNTEC 1kw servo motor	1
	9kw HQD water cool spindle	1
	X axis M2 grinding gear rack	1
	Y axis PMI—4040 high accuracy ball screw	2
	Z axis PMI—3210 high accuracy ball screw	1
	X axis 30 linear guide rail	3
	Y axis 30 linear guide rail	4
	Z axis 30 linear guide rail	2
	FULING 11KW frequency governor	1
	13 . T slot aluminum station	4
	Work area 1220x2440mm
	Central air storage system	1
	Central lubrication system	1
	Fast change tool	8
	Spring fixture	1
	Check list	1
	Quality paper	1
	Water pump	1

Parameters

	name	parameter
index	X axis max trip	3300mm
	Y axis max trip	2150mm
	Z axis max trip	800mm
	Gantry width	4000mm
	Gantry height	2300mm
	A axis swing angel	-120°⁓120°
	C axis swing angel	-400°⁓400°
	X、Y axis max speed	0⁓60000mm/min
	Z axis max speed	0⁓30000mm/min
	A、C axis max speed	170、270°/sec
	X、Y axis max work speed	0⁓30000mm/min
	Z axis max work speed	0⁓25000mm/min
	X、Y、Z axis acceleration	3m/s2
	Station capacity	80kg/㎡
	Spindle max speed	24000r/min
	Max kw	15kw
	Machine size	4.2x3.2x3.7m LHW
	Machine weight	4ton

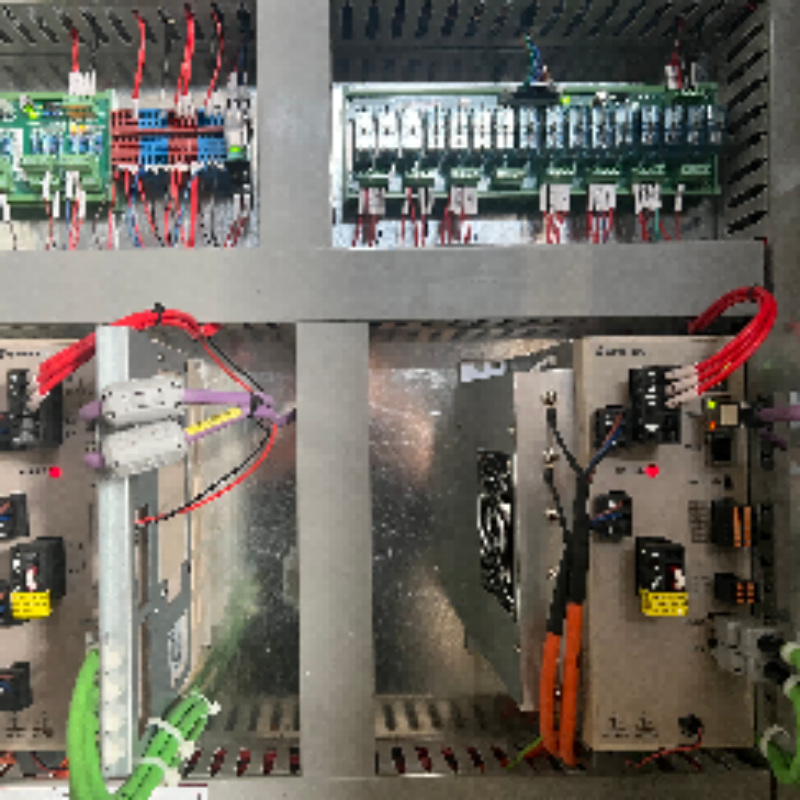

Spareparts

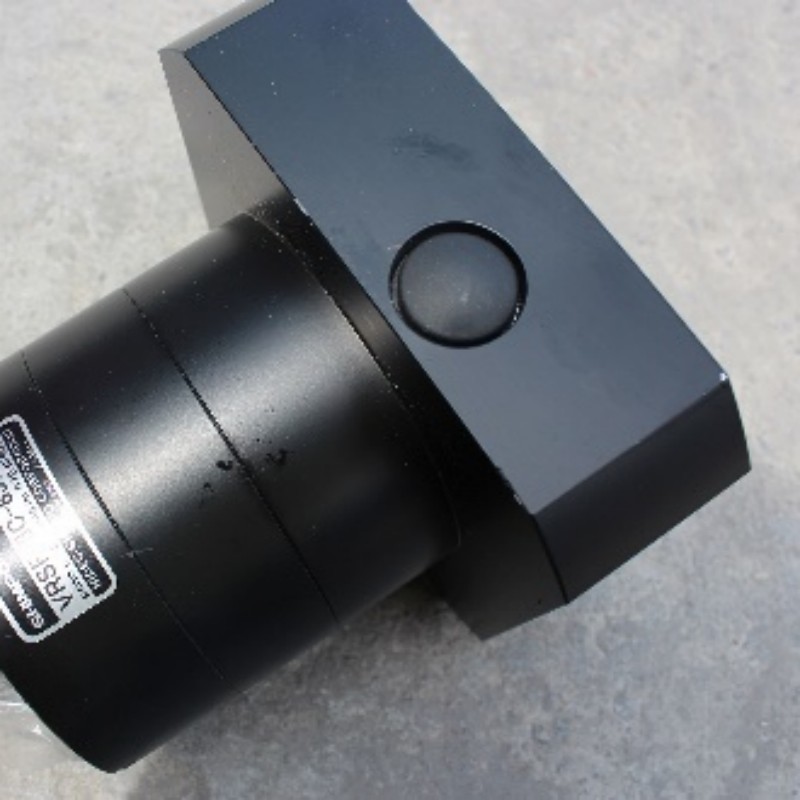

SYNTEC System	reducer	axis

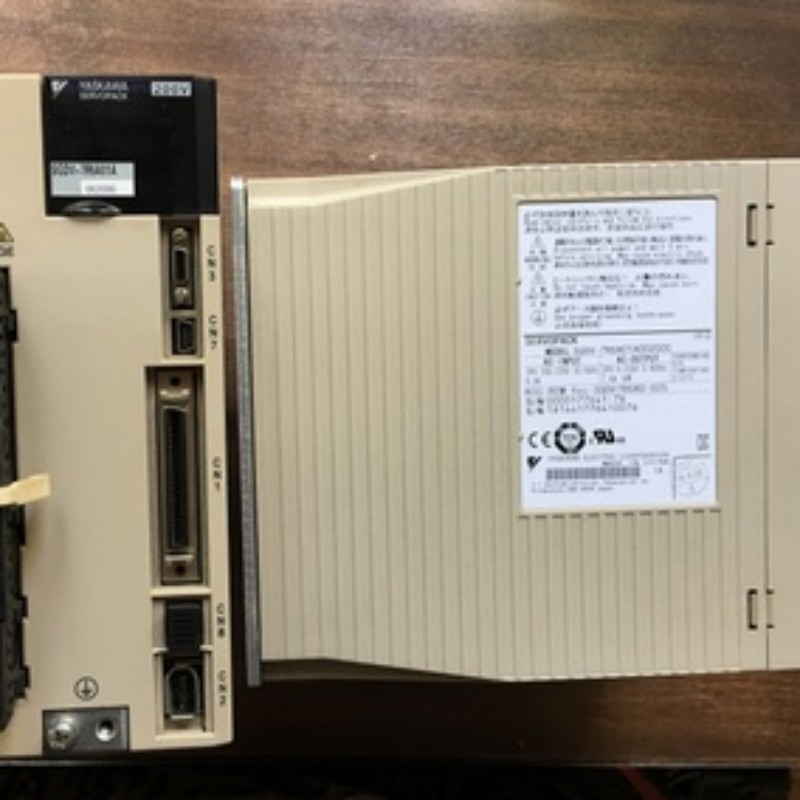

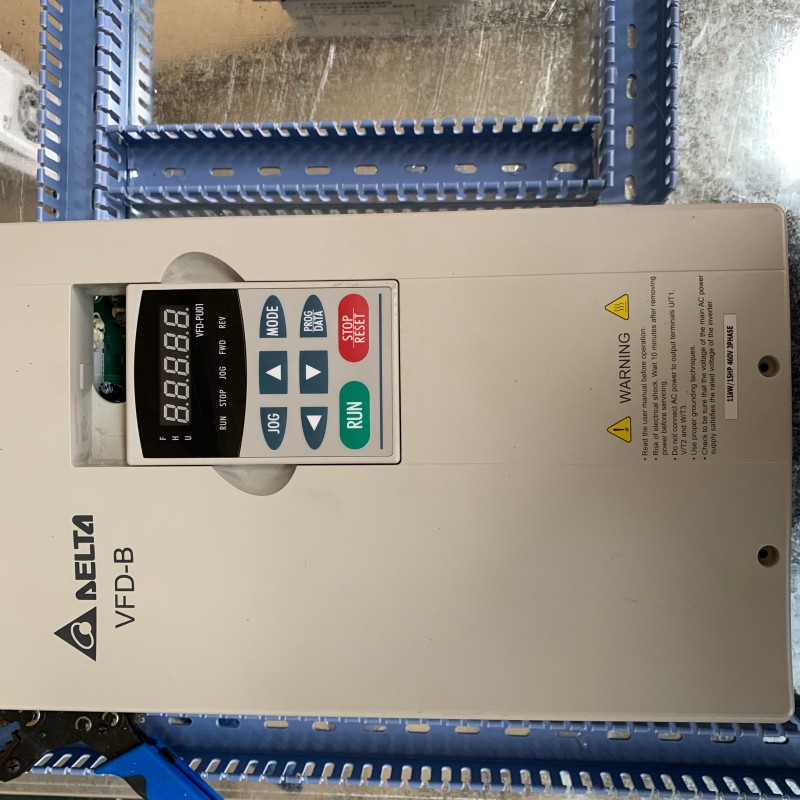

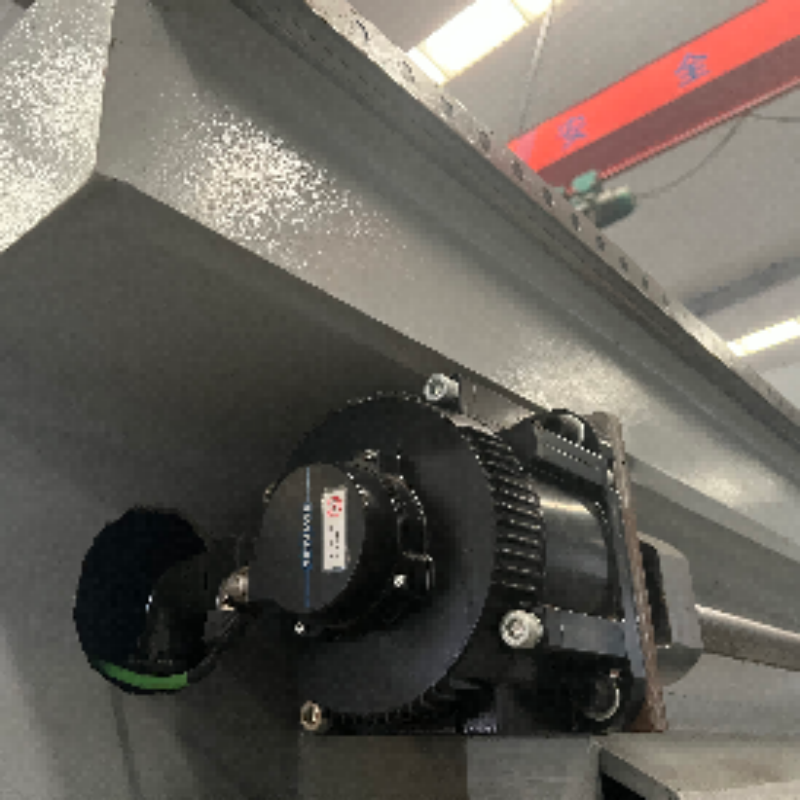

YASWKA Servo motor	Servo driver	Frequency governor

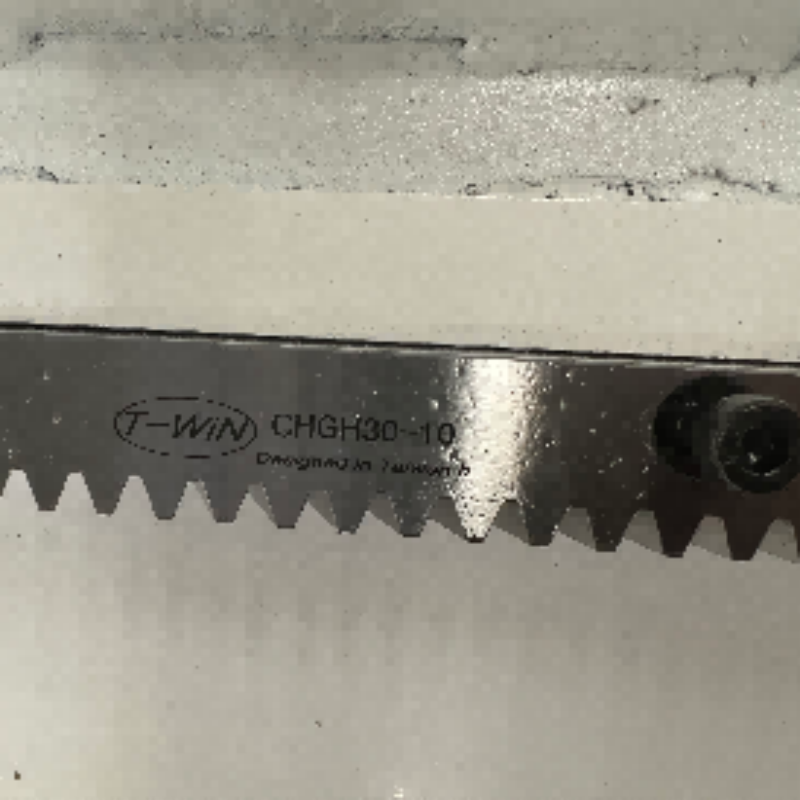

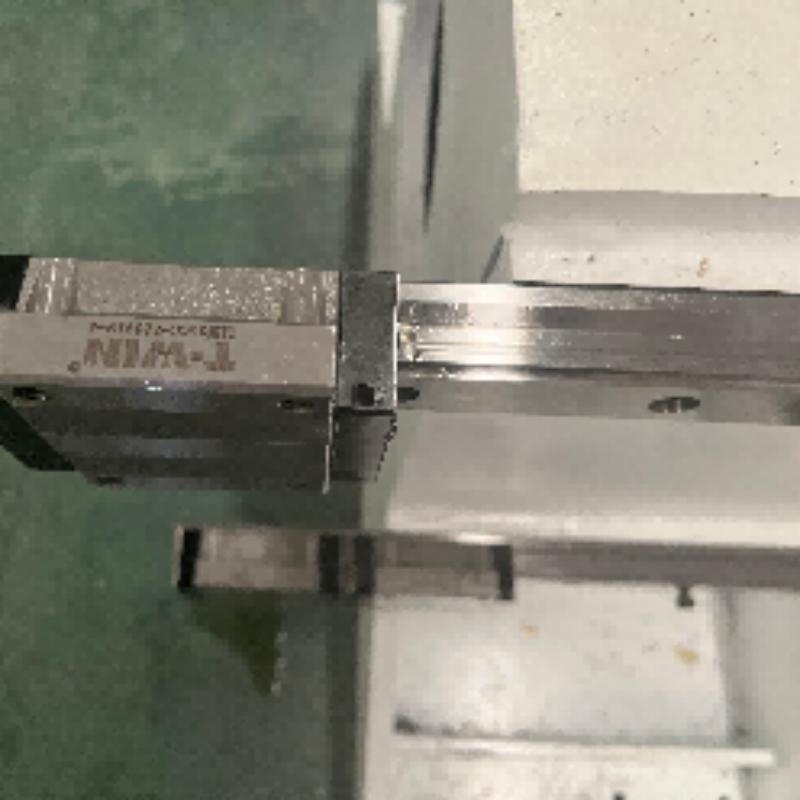

T-WIN Rack	Electronic part	Linear guide rail
